VANDA-LAY’S  ACRA MILL PLUS. A COMPLETE AND VERY ACCURATE MINI SHOP ALL IN ONE MACHINE

THE NEW ACRA MILL PLUS WAS DESIGNED WITH THE SERIOUS MODEL MAKER IN MIND. BUT IT IS SO EASY TO USE, EVEN THE BEGINNER WILL FIND IT A GREAT ASSET TO DO THE MOST SIMPLE MODELING TASK (SANDING, GRINDING, POLISHING,ETC.).) TO THE MOST PRECISION JOBS WORKING WITHIN .001” IF NEEDED, AND USING ONLY A DREMEL MOTO TOOL, HAND PIECE, FOREDOM, OR ANY COPY OF THE DREMEL THE OTHER MANUFACTURES MAKE.

X TABLE 2”X4” WITH 5 1/2” TRAVEL. THE RODS ON THE X AND Z ARE 7” LONG

PART #0501

THE NEW ACRA MILL PLUS IS MACHINED FROM SOLID ALUMINUM, OIL HARDENED DRILL STOCK, AND FLAT GROUND STOCK. WE MAKE THIS WAY SO IT WILL LAST A LIFE TIME OR MORE, SO YOU CAN WORK WITH COMPLETE PRECISION AND SAFETY. THE ACRA MILL COMES READY TO USE, ALL YOU DO IS ADD YOUR FAVORITE MOTO TOOL AND TOOL BITS. IT ALSO COMES WITH AN ASSEMBLED WOOD BASE TO MAKE IT EASY TO ANCHOR TO ANY WORK BENCH.

INSTRUCTION SHEET

HOW TO ORDER

Now only $229.95 +$16.00 S&H

12” RODS AVAILABLE ON ACCESSORY PAGE

THE X TABLE IS QUICK SLIDING, AND CAN BE LOCKED INTO PLACE IN AN INSTANT, THEN BY USING THE SLIP DIAL WORK CAN BE DIALED IN WITHIN THOUSANDTHS OF AN INCH

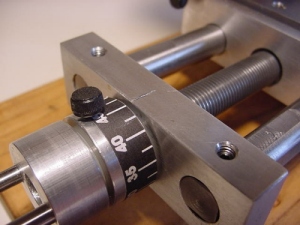

CLOSE UP OF THE ACRA MILL’S SLIP DIAL  A FULL TURN IS .050” , 00 TO 5 IS .005” ETC.

THE “X” TABLE TRAVELS LEFT AND RIGHT

JUST ONE OF MANY SET UPS. THE WOOD BLOCK IS IS DOUBLE TAPED DOWN TO THE X Y TABLE, AND USED AS A SAWING SURFACE.

TYPICAL SAWING SET UP. MAKE DADOS, SLOTS ETC. WITH THE SAW MANDREL ATTACHMENT

THICKNESS SANDING WITH A DRUM SANDER BIT IS AS EASY AS TURNING THE CLAMP 90 DEGREES. DIAL IN PRECISION BY USING NYLON SCREW BETWEEN THE WAYS ON THE UPPER ARM.

SHIP MODELER NIBBLING AWAY AT A SCARPH JOINT

ACCESSORY PAGE CLICK HERE

INSTRUCTION SHEET

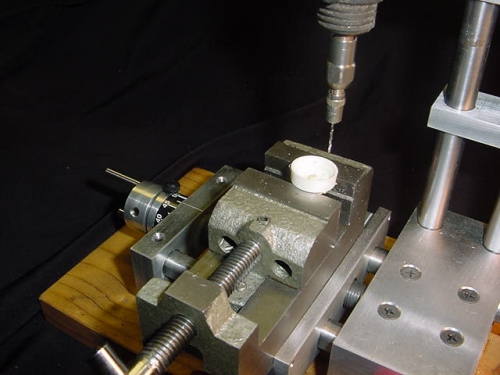

ON THE LEFT. DRILL SMALL PLASTIC PARTS WITH PRECISION AND EASE USING THE MACHINIST VISE WITH THE DRILL PRESS ATTACHMEN T. YOU CAN DIAL IN THE EXACT SPOT YOU NEED TO BE.

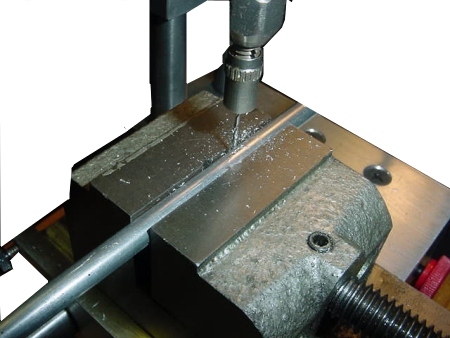

ON THE RIGHT. DRILL TINY PRECISION HOLES IN ALUMINUM TUBING

ON THE RIGHT, IS THE CUT OFF SAW SET UP. BY TURNING THE CLAMP SWING ARM 90 DEGREES, AND BY ADDING A SAW BLADE, YOU GET A FREE CUT OFF SAW WITH THE DRILL PRESS ATTACHMENT KIT. WE ALSO SELL THE SAW MANDREL AND SAW BLADES YOU SEE IN THE PICTURE FOR A MORE ACCURATE AND SAFER CUT. SEE BELOW.

CHECK OUT OUR ACCESSORIES PAGE, AND SAVE ON SHIPPING WHEN YOU ORDER AT THE SAME TIME YOU PURCHASE THE ACRA MILL PLUS

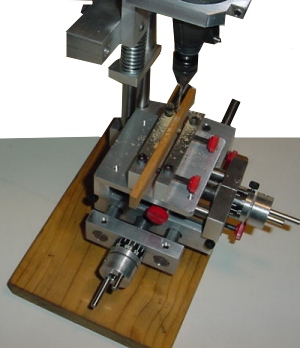

 BELOW; MILLING AND HOLDING AN ODD SHAPED PIECE OF WORK .BELOW HOLDING A WORK PIECE FOR DRILLING ACCURATE HOLES

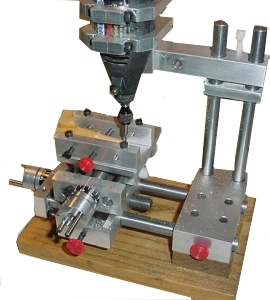

BELOW, MILLING A SLOT IS EASY, AND ACCURATE WITH THE “Y” TABLE ATTACHMENT

HOW TO ORDER

ACCESSORIES PAGE

INSTRUCTIONS FOR THE ACRA MILL PLUS, THE “Y” TABLE, AND THE DRILL PRESS ATTACHMENT CLICK HERE
