ACRA MILL ACCESSORIES

12” RODS FOR THE MICRO LATHE, “X” AXIS, OR THE “Z” AXIS.

12 INCH RODS; $24.95 A PAIR + $8.95 S&H. SPECIFY MICRO LATHE “Z” OR “X” AXIS WHEN ORDERING.

HOW TO ORDER



		*VANDA-LAY INDUSTRIES*
P.O.BOX 1945 RUNNING SPRINGS,CALIFORNIA 92382
	EMAIL: vandalay1@verizon.net PHONE : 909-744-4445


	*UNIQUE, ONE OF A KIND, HIGH QUALITY* *MODELING* *TOOLS* *MADE IN THE* U.S.A.

[HOME]
[TREENAIL MAKER]
[DUPLICATOR]
[HOLD-IT PLUS]
[THE HOG SANDER]
[ACRA MILL PLUS]
[MILL ACCESSORIES]
[ROUTER TABLE]
[LINKS]
[DRILL PRESS PLUS]
[HOW TO ORDER]
[PRICE LIST]


	WE ACCEPT PAY PAL, CHECKS,MON EY ORDERS, AND ALL THESE CREDIT CARDS


	THE NEW “Z” AXIS FINE ADJUSTMENT ATTACHMENT


	Fine adjustment dial in increments of .005”. A full turn equals .050”. Comes with everything you see on the left. Ready, easy to install.


	ORDER NOW! $35.95 + $8.95 SHIPPING & HANDLING


		HOW TO ORDER

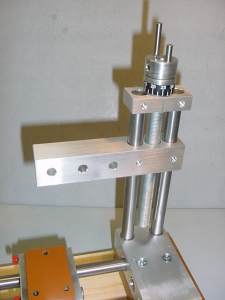

		New “Z” axis attachment in place on The Acra Mill Plus. Shown with optional “Y” Table.

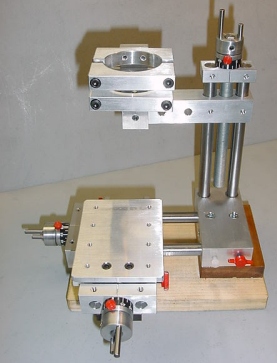

	All 3 axis, X, Y, and the NEW “Z” axis attachment.

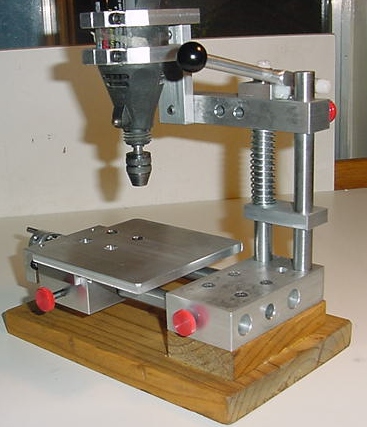

	THE DRILL PRESS ATTACHMENT FOR THE ACRA MILL PLUS

MILL INSTRUCTION SHEET

		PART # 0502

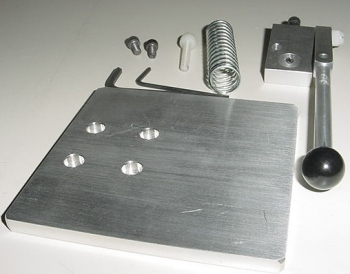

	THE DRILL PRESS AND CUT OFF SAW ACCESSORY KIT COMES COMPLETE WITH EVERYTHING YOU SEE HERE.THE DRILL TABLE MEASURES 4”X4” AND CAN BE SECURED DOWN IN IN 4 CONFIGURATIONS.WAS ~~$49.00~~ NOW $36.95+$8.95 S&H WHEN SOLD SEPARATELY. WAS $36.95 WHEN PURCHASED WITH MILL ;ALSO FREE S&H HOW TO ORDER


	THE DRILL PRESS ALLOWS YOU TO DRILL VERY TINY AND ACCURATE HOLES. IT ALSO COMES WITH A DEPTH STOP. THE DRILL PRESS ATTACHMENT KIT DOUBLES AS A CUT OFF SAW WHEN YOU ADD A SAW BLADE TO THE DREMEL AND TURN THE CLAMP BRACKET 90 DEGREES. THE DRILL PRESS TABLE DOUBLES AS A LARGE WORK SURFACE




			PART # MD 1
	20 PIECE HIGH SPEED STEEL MICRO DRILLS IN METAL INDEX CASE. .013” INCH TO .038”INCH $12.95 + $5.00 S&H. FREE S&H WHEN PURCHASED WITH LARGER ITEMS




		PART # DC 1

	MICRO KEYLESS DRILL CHUCK. HOLDS DRILL SIZES; 61 TO 80. SHANK IS 1/8“DIAMETER $8.95 + $5.00 S&H. FREE S&H WHEN PURCHASED WITH LARGER ITEMS

HOW TO ORDER


	THE SAW MANDREL

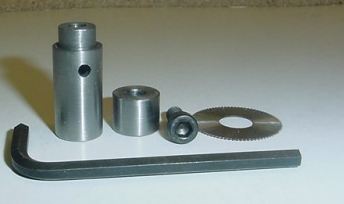

THE SAW MANDREL IS MACHINED FROM SOLID STAINLESS STEEL, AND SCREWS DIRECTLY ON THE MOTO TOOL SHAFT FOR A TRUER FIT AND MAXIMUM BALANCE. THE SAW BLADE IS MADE OF HIGH SPEED STEEL, AND WILL CUT THROUGH METAL AND STAY SHARP. COMES WITH EVERYTHING YOU SEE HERE. THE SAW BLADE IS.032” THICK BY 1” DIAMETER. $35.95: +$8.95 S&H WHEN SOLD SEPARTERLY $35.95 + Free Shipping WHEN PURCHASED WITH THE MILL


LONG LASTING HIGH SPEED STEEL SAW BLADES
		1.1/4” SAWS $15.00 ea.
SAW BLADES COME IN THESE 3 THICKNESS’

	.010”-1.1/4”114 TEETH .018” 1.1/4” 98 TEETH .032” - 1.1/4” 98 TEETH
SPECIFY PART #, THICKNESS,AND QUANITY WHEN ORDERING


	*NEW LOW PRICE!*

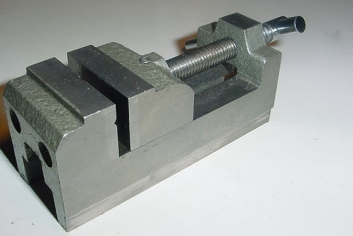

	*MACHINIST VISE FOR THE ACRA MILL PLUS*

PART#0506

HOW TO ORDER

PRECISION GROUND MACHINIST VISE TO FIT IN THE ACRA MILL ”X” TABLE ; WAS ~~$36.00~~ NOW $31.95+ 9.95 S&H WHEN ORDERED SEPARATELY; $31.95 WITH FREE S&H WHEN ORDERED WITH THE MILL.


	*THE “Y” TABLE ATTACHMENT FOR THE ACRA MILL PLUS*



		COMES WITH ALL THIS. THE TABLE USES STANDARD 8-32 SCREWS, SO YOU CAN CREATE MANY DIFFERENT SET UPS TO HOLD ALL SORTS OF PIECES.

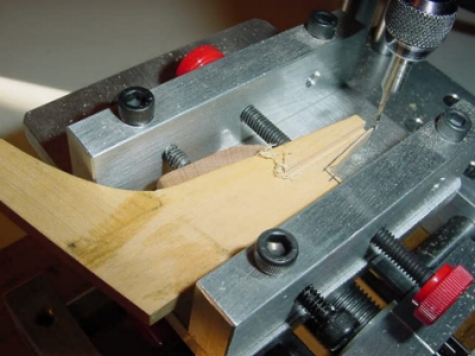

			BELOW, MILLING A SLOT IS EASY, AND ACCURATE WITH THE “Y” TABLE ATTACHMENT



			PART# 0507

		Y TABLE DIMENSIONS: TABLE TOP: 3.”X 4” TRAVEL: 3.”


THE “Y”TABLE & TABLE VISE WAS $72.95 + $9.95 S&H WHEN ORDERED SEPARATELY. $72.95 + FREE S&H WHEN YOU ORDER WITH THE ACRA MILL PLUS

	HOW TO ORDER

	BELOW IS A TOP VIEW OF THE X AND Y TABLE. BOTH ARE QUICK SLIDE FOR EASY POSITIONING. THEN JUST DIAL IN TO THE PRECISE LOCATION YOU NEED TO DO YOUR WORK


	INSTRUCTION SHEET

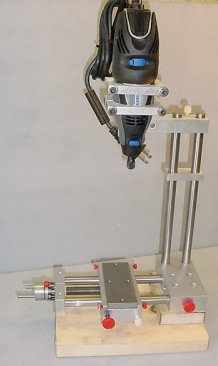

		EXPAND THE CAPACITY OF THE “Z” OR “X” AXIS. “Z” AXIS SHOWN ABOVE WITH NEW 12” RODS


	*NEW SOLID ALUMINUM BASE PLATE !*

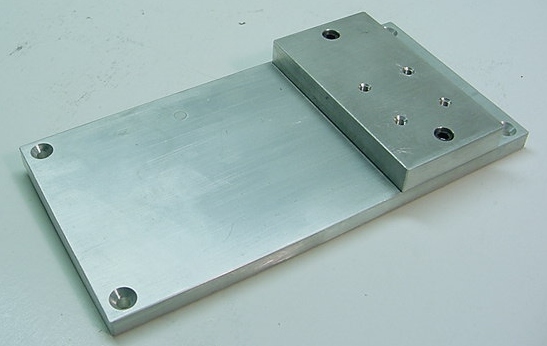

THE BASE PLATE FOR THE ACRA MILL PLUS IS A 2 PIECE SOLID ALUMINUM MACHINED BAR STOCK. THE LARGE PLATE MEASURES 3/8” X 4” X 8” LONG. IT COMES WITH ALL THE HARDWARE TO MOUNT THE MILL. REPLACES THE WOODEN BASE THAT COME STANDARD WITH THE ACRA MILL PLUS. $38.95+ $8.95 S&H; OR FREE SHIPPING IF ORDERED WITH MILL.

PART # BP01

HOW TO ORDER

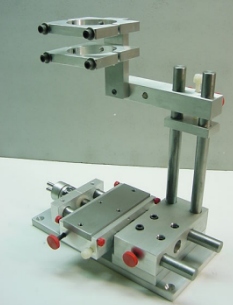

	THE ACRA MILL WITH THE NEW ALUMINUM BASE PLATE. EVEN MORE STABILITY, AND LOOKS GREAT!


	INSTRUCTIONS FOR THE ACRA MILL PLUS, THE “Y” TABLE, AND THE DRILL PRESS ATTACHMENT. CLICK HERE

INSTRUCTIONS FOR THE MICRO LATHE. CLICK HERE

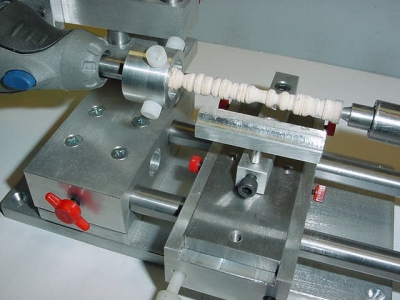

	THE MICRO LATHE HAS A 11” CAPACITY (WITH 12” RODS) FROM CENTER TO CENTER. THE MICRO LATHE TAIL STOCK WILL ADJUST TO ANY MOTO TOOL.ADJUST HEIGHT AND FROM SIDE TO SIDE IN SECONDS. YOU CAN USE ANY NUMBER OF SMALL SHARP TOOLS TO DO YOUR WORK.


		THE MICRO LATHE IS FAST, EASY, AND FUN TO USE. IT ONLY TAKES A COUPLE OF MINUTES TO SET UP.

	AGAIN, ALL PIECES ARE MACHINED FROM SOLID , ALUMINUM, AND WATER HARDENED STEEL.


	LATHE INSTRUCTIONS


	LATHE SHOWN WITH OPTIONAL ALUMINUM BASE PLATE(#BP01)



		PART # MLO1


		6 PIECE 5 1/2” STAINLESS STEEL MINI CHISEL SET. $12.95-FREE SHIPPING

	HOW TO ORDER

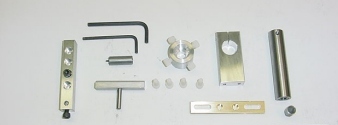

THE LATHE ATTACHMENT COMES WITH ALL YOU SEE HERE. LIVE CENTER WITH BALL BEARINGS; DRIVER THAT SCREWS DIRECTLY ON ANY MOTO TOOL; TAIL STOCK; TOOL REST WITH BRACKET; MINI 4 JAW WITH NYLON SCREWS FOR HOLDING SQUARE AND ROUND PIECES SECURELY; AND ALL THE HARDWARE. Lathe Attachment: $59.95. +$8.95 S&H. FREE S&H WHEN PURCHASED WITH MILL



	PART#C-1
